Product Description

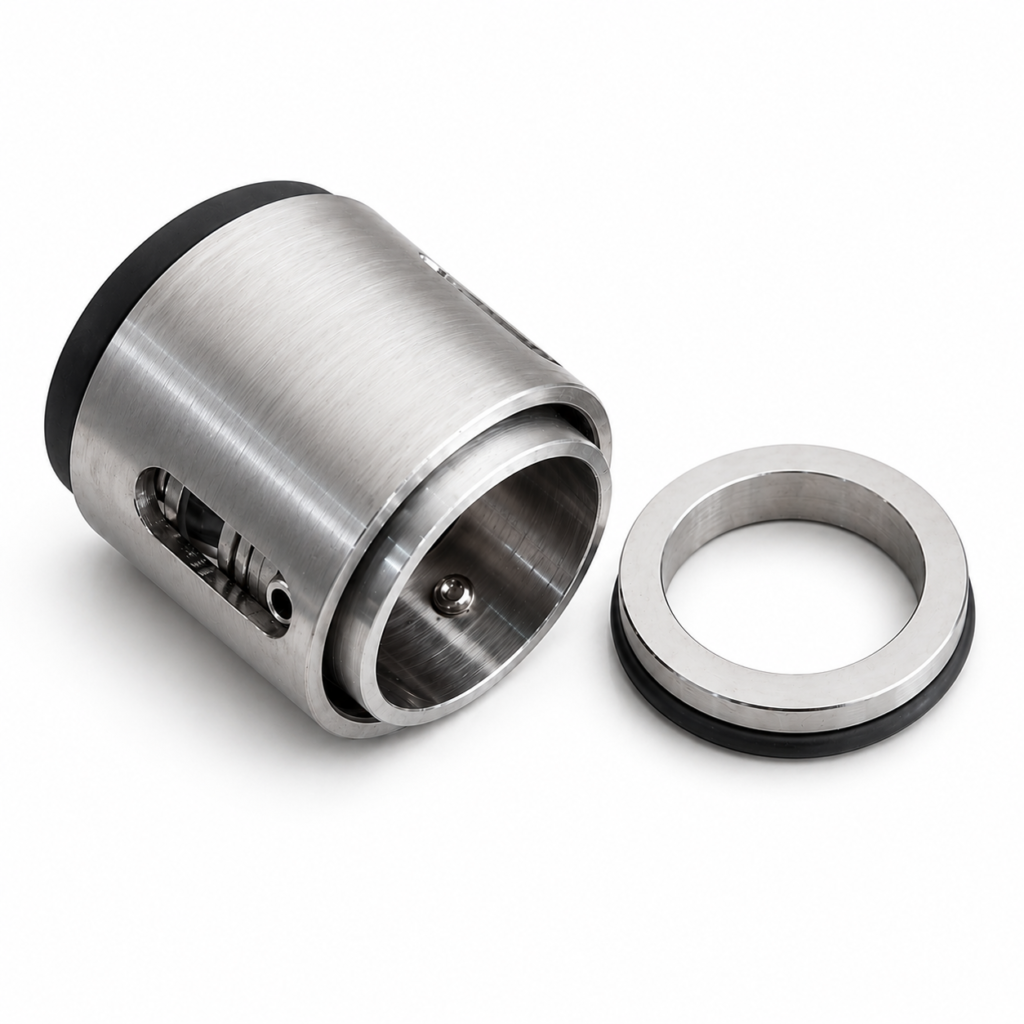

The Single Spring Balanced Mechanical Seal manufactured by Maceng Engineering is designed to provide reliable sealing performance in demanding industrial applications involving higher pressures, elevated temperatures, and challenging operating conditions. Its balanced design reduces face loading, minimizing wear and heat generation while enhancing seal life and operational efficiency.
The single spring mechanism ensures smooth axial movement and uniform face loading, providing reliable performance even under fluctuating operating conditions.
This seal is suitable for centrifugal pumps, chemical process pumps, oil pumps, hot water applications, and rotating equipment handling corrosive or high-temperature fluids. The compact and robust construction allows easy installation, low maintenance, and excellent resistance to leakage, vibration, and shaft deflection.
Manufactured using precision-engineered components and premium-grade materials, the seal is available in multiple face combinations and elastomer options to suit different industrial media and operating environments.
Technical Specifications:
- Seal Type: Single Spring Balanced Mechanical Seal
- Design: Balanced / Internally Mounted
- Shaft Size Range: 12 mm to 100 mm
- Pressure Capacity: Up to 16 Bar
- Temperature Range: -20°C to +250°C (depending on material combination)
- Speed: Up to 3600 RPM
- Face Material Options: Carbon, Ceramic, Silicon Carbide (SIC), Tungsten Carbide (TC)
- Elastomer Options: NBR, Viton, EPDM, PTFE
- Metal Components: SS 304, SS 316, Hastelloy
- Spring Material: Stainless Steel / Hastelloy
- Applications: Chemical Pumps, Oil & Gas Pumps, Hot Water Pumps, Process Industries, Pharmaceutical, Petrochemical, Food Processing, Textile, and General Engineering Industries
Features:
- Balanced design for high-pressure applications
- Reduced face wear and heat generation
- Low leakage and high operational reliability
- Suitable for corrosive and high-temperature media
- Compact construction with easy maintenance
- Long service life and improved equipment efficiency
The Single Spring Balanced Mechanical Seal by Maceng Engineering delivers dependable sealing performance, enhanced durability, and long-term reliability for critical industrial pumping systems and rotating equipment across various industries worldwide.
