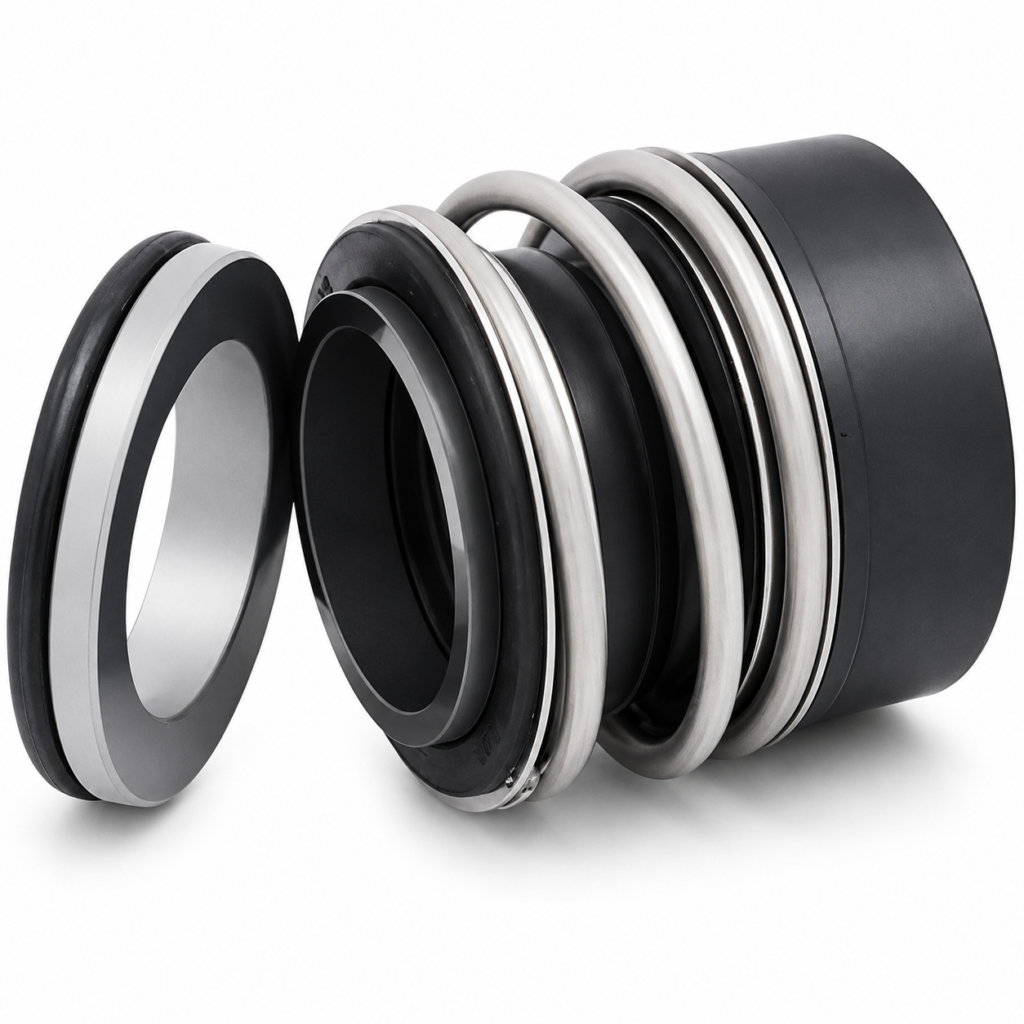

EMG 13

The MG13 Mechanical Seal manufactured by Maceng Engineering is a high-performance rubber bellow mechanical seal designed for water pumps, sewage pumps, chemical pumps, and general industrial rotating equipment applications. Its flexible rubber bellow construction acts as an effective secondary sealing element, providing excellent compensation for shaft movement, vibration, and minor misalignment while maintaining consistent sealing performance under varying operating conditions.

Manufactured using precision-engineered components, premium seal face materials, and corrosion-resistant metal parts, the MG13 Mechanical Seal delivers reliable leak-free operation, excellent wear resistance, and long service life. The single spring, unbalanced design ensures stable face loading and dependable sealing efficiency for both clean and moderately contaminated fluid applications. Its robust construction, easy installation, and low maintenance requirements make it a preferred sealing solution for industrial pumps and rotating equipment where reliability, durability, and cost-effective performance are essential.

Request a Quote

Product Description

The MG13 Mechanical Seal manufactured by Maceng Engineering is a dependable rubber bellow mechanical seal designed for a wide range of industrial pumping and rotating equipment applications. Its robust rubber bellow construction provides excellent flexibility while eliminating the need for additional dynamic secondary sealing elements, ensuring reliable performance under varying operating conditions.

Featuring a single spring, unbalanced design with internally mounted construction, the MG13 seal offers stable face loading, effective leakage control, and smooth operation. The seal is independent of the direction of shaft rotation, making it suitable for diverse industrial applications requiring consistent and maintenance-friendly sealing performance.

Manufactured using premium seal face materials, high-quality elastomers, and corrosion-resistant metal components, the MG13 Mechanical Seal delivers excellent wear resistance, long service life, and cost-effective operation in both clean and moderately contaminated fluid handling systems.

Technical Specifications:

Seal Type: MG13 Mechanical Seal
Design: Rubber Bellow Mechanical Seal
Configuration: Single Spring Seal, Unbalanced Seal
Construction: Internally Mounted
Rotation: Independent of Direction of Rotation
Shaft Size Range: 10 mm to 100 mm
Pressure Capacity: Up to 16 Bar
Temperature Range: -20°C to +140°C
Speed: Up to 12 m/s

Material Combinations:

Rotary Face: Carbon, Silicon Carbide (SIC), Tungsten Carbide (TC)
Stationary Seat: Ceramic, Silicon Carbide (SIC), Tungsten Carbide (TC)
Elastomer Options: NBR, EPDM, Viton, HNBR
Metal Components: SS 304, SS 316

Features:

Durable rubber bellow construction
Reliable leak-free sealing performance
Single spring design for stable operation
Independent of shaft rotation direction
Excellent flexibility for shaft movement compensation
Easy installation and low maintenance
Suitable for clean and moderately contaminated fluids
Long operational service life

Applications:

Water Pumps
Chemical Pumps
Sewage Pumps
Industrial Process Pumps
Mixers and Agitators
General Industrial Rotating Equipment

The MG13 Mechanical Seal by Maceng Engineering provides reliable sealing performance, durability, and operational efficiency, making it an ideal choice for industrial applications requiring a cost-effective and dependable mechanical sealing solution.
