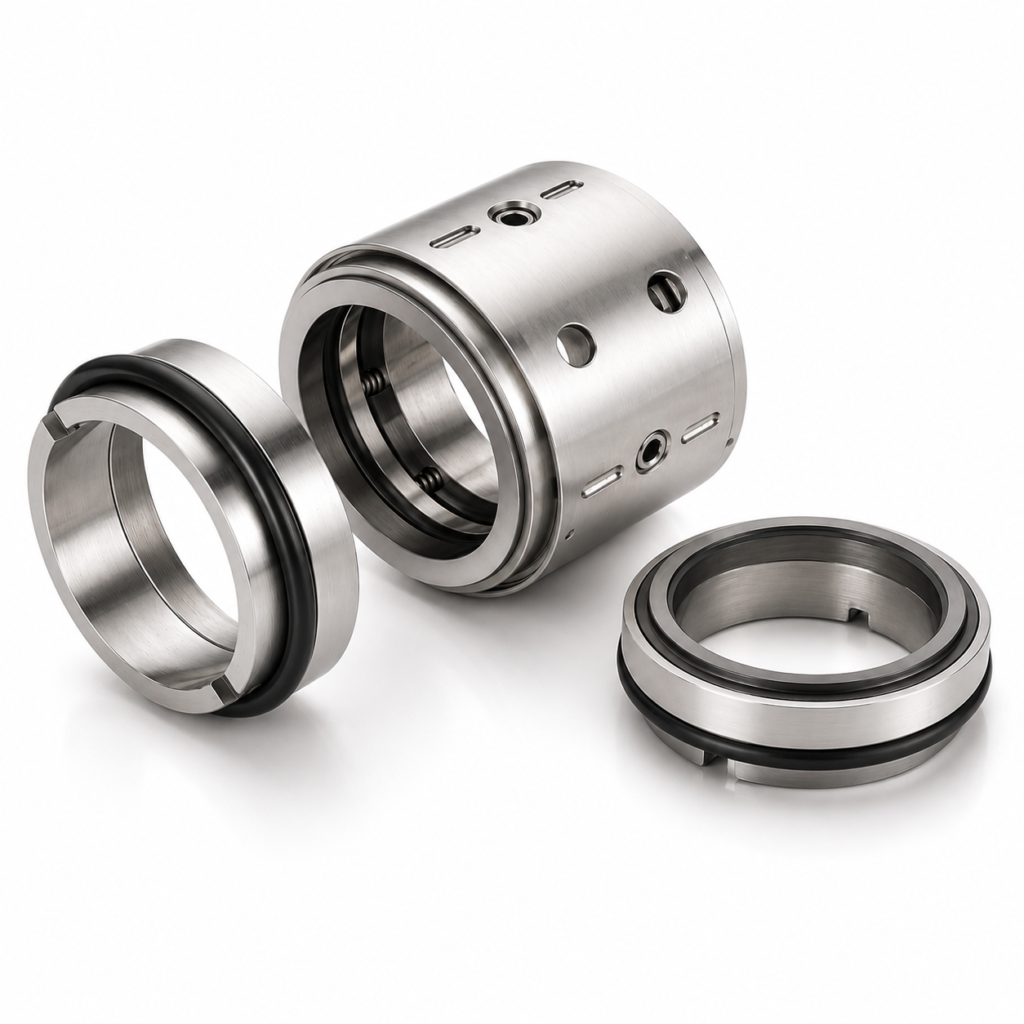

Multi Spring Double Seal

The Multi Spring Double Mechanical Seal manufactured by Maceng Engineering is a high-performance sealing solution designed for handling hazardous, toxic, corrosive, abrasive, and high-temperature fluids in critical industrial applications. The double seal arrangement consists of two sets of sealing faces operating together with a barrier or buffer fluid system, ensuring near-zero leakage, enhanced process safety, and reliable environmental protection. Its multi spring construction provides uniform face loading, stable sealing performance, and smooth operation under demanding pressure and temperature conditions. Engineered using precision-manufactured components and premium-grade materials, the seal offers exceptional resistance to wear, corrosion, vibration, thermal distortion, and shaft deflection, making it ideal for chemical processing, petrochemical, refinery, pharmaceutical, power generation, and other critical process industries.

Request a Quote

Product Description

The Multi Spring Double Mechanical Seal manufactured by Maceng Engineering is designed to provide superior sealing reliability for critical industrial applications involving hazardous, corrosive, toxic, and environmentally sensitive fluids. The double seal arrangement offers enhanced leakage protection and operational safety, making it ideal for demanding process industries requiring maximum product containment.

The multi spring design provides uniform face loading, improved flexibility, and stable sealing performance even under fluctuating pressure and temperature conditions. Multiple springs positioned evenly around the shaft eliminate uneven wear and ensure smooth axial movement, resulting in longer seal life and reliable operation in continuous-duty applications.

This seal is widely used in chemical processing, petrochemical plants, refineries, pharmaceutical industries, oil & gas facilities, and other applications where product containment and environmental safety are essential. Manufactured with precision-engineered components and premium-grade materials, it offers excellent resistance to leakage, corrosion, vibration, thermal distortion, and shaft deflection.

Technical Specifications:

Seal Type: Multi Spring Double Mechanical Seal
Design: Double Seal / Balanced / Internally Mounted
Arrangement: Back-to-Back / Face-to-Face / Tandem
Shaft Size Range: 25 mm to 150 mm
Pressure Capacity: Up to 25 Bar
Temperature Range: -20°C to +300°C (depending on material combination)
Speed: Up to 5000 RPM
Face Material Options: Carbon, Silicon Carbide (SIC), Tungsten Carbide (TC), Ceramic
Elastomer Options: Viton, EPDM, PTFE, Kalrez, NBR
Metal Components: SS 304, SS 316, Hastelloy, Alloy-20
Spring Material: Stainless Steel / Hastelloy
Barrier Fluid System: API Plan Compatible
Applications: Chemical Pumps, Reactor Pumps, Hydrocarbon Pumps, Solvent Pumps, Refinery Pumps, Pharmaceutical Industries, Petrochemical Plants, Power Plants, and Process Industries

Features:

Double seal arrangement for maximum leakage protection
Suitable for hazardous and corrosive fluids
Multi spring design for uniform face pressure
Excellent heat dissipation and operational stability
High-pressure and high-temperature capability
Reduced wear and extended seal life
Reliable performance in critical applications
Easy maintenance and robust construction

The Multi Spring Double Mechanical Seal by Maceng Engineering is engineered to provide superior sealing reliability, environmental safety, and long-lasting performance for demanding industrial pumping systems and critical process applications worldwide.
