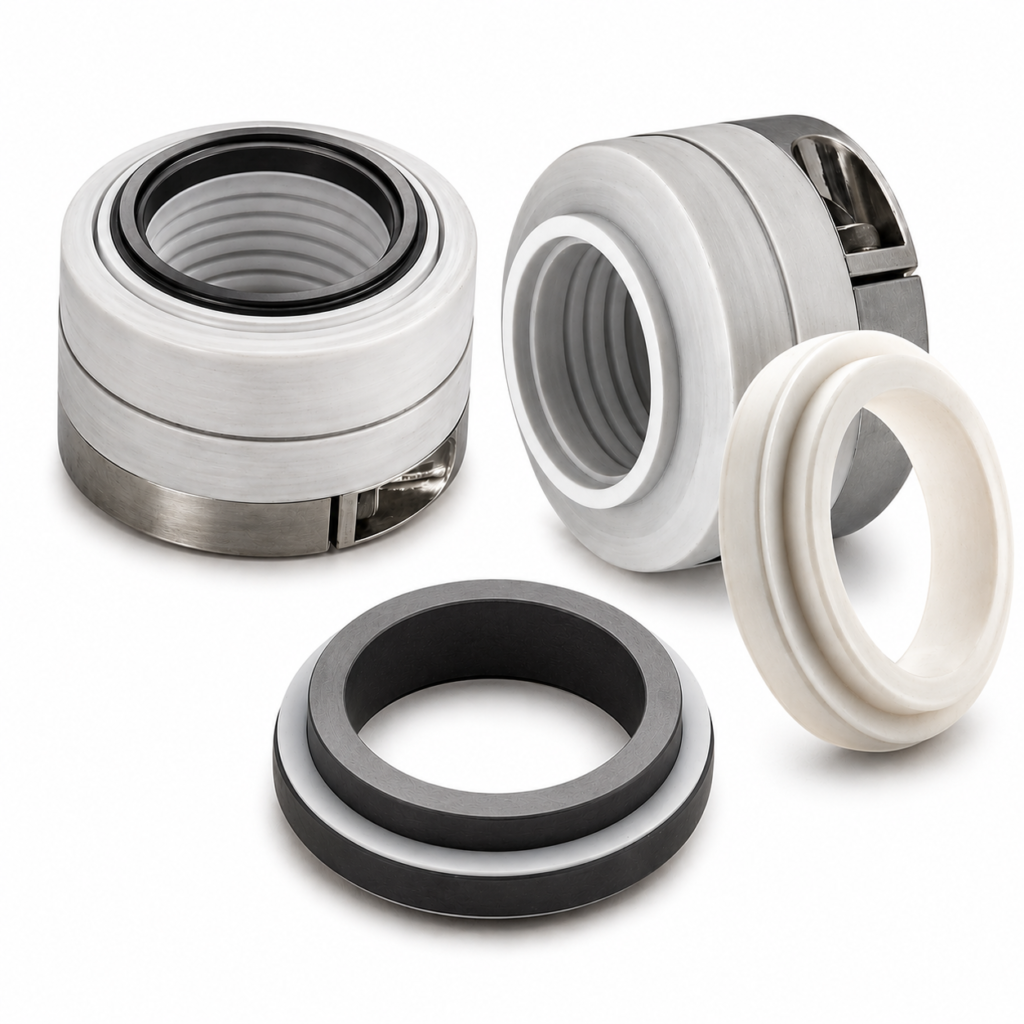

Teflon Bellow Seal

The Teflon Bellow Mechanical Seal manufactured by Maceng Engineering is specially designed for handling highly corrosive chemicals, acids, solvents, and aggressive process media where conventional elastomer-based seals are not suitable. The seal utilizes a PTFE (Teflon) bellow instead of traditional rubber elastomers, providing exceptional chemical resistance, non-stick characteristics, and reliable sealing performance in demanding industrial environments. Its robust construction ensures smooth axial movement, excellent resistance to chemical attack, and stable operation under harsh working conditions. Manufactured using precision-engineered components and premium-grade materials, the seal delivers superior resistance to corrosion, leakage, and chemical degradation, making it an ideal choice for chemical processing, pharmaceutical, petrochemical, fertilizer, and other corrosive fluid handling applications.

Request a Quote

Product Description

The Teflon Bellow Mechanical Seal manufactured by Maceng Engineering is specially designed for handling highly corrosive chemicals, acids, solvents, and aggressive process fluids. Its compact and robust construction ensures leak-resistant operation, smooth axial movement, and excellent resistance to chemical attack, making it ideal for chemical processing, pharmaceutical, petrochemical, fertilizer, and corrosive fluid handling applications.

The PTFE bellow eliminates the need for conventional secondary elastomers, reducing the risk of swelling, hardening, cracking, or chemical degradation. Manufactured using precision-engineered components and premium-grade materials, the seal offers stable performance, low maintenance requirements, and long operational service life under harsh industrial conditions.

Technical Specifications:

Seal Type: Teflon Bellow Mechanical Seal
Design: Unbalanced / Internally Mounted / PTFE Bellow Type
Shaft Size Range: 12 mm to 100 mm
Pressure Capacity: Up to 10 Bar
Temperature Range: -20°C to +200°C, depending on face material and application
Speed: Up to 2500 RPM
Face Material Options: Carbon vs Ceramic, Carbon vs Silicon Carbide (SIC), Silicon Carbide vs Silicon Carbide, Tungsten Carbide
Bellow Material: Pure PTFE (Teflon)
Metal Components: SS 304, SS 316, Hastelloy, Titanium (Optional)

Applications:

Chemical Pumps
Acid Transfer Pumps
Solvent Pumps
Pharmaceutical Industries
Petrochemical Industries
Fertilizer Plants
Corrosive Chemical Processing
Dye & Pigment Industries

Features:

Excellent resistance to corrosive and aggressive chemicals
Pure PTFE bellow construction
No conventional secondary elastomer required
Compact and robust design
Smooth axial movement and reliable face loading
Reduced risk of swelling, hardening, and chemical degradation
Low leakage and dependable sealing performance
Easy installation and low maintenance
Long operational service life

The Teflon Bellow Mechanical Seal by Maceng Engineering provides dependable sealing performance, excellent chemical resistance, and long-term operational reliability for corrosive and demanding industrial fluid-handling applications.
