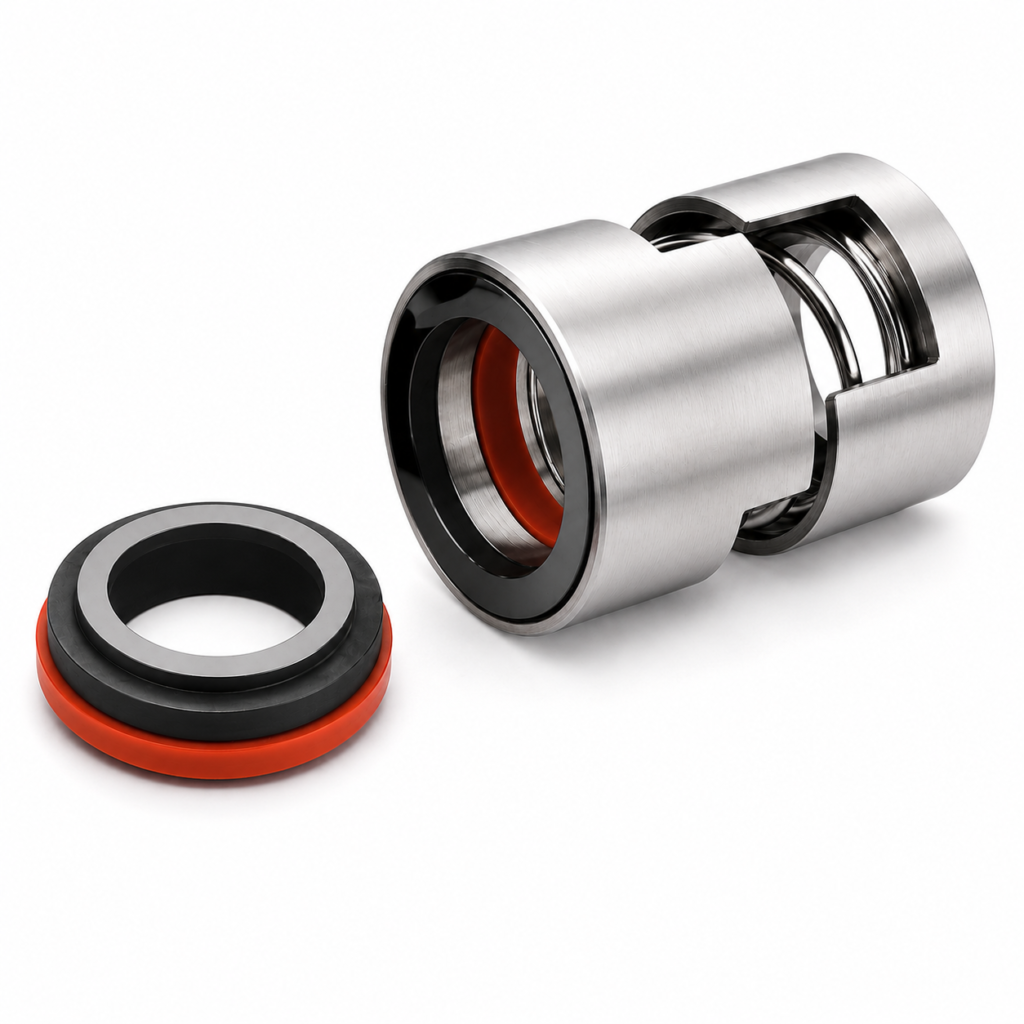

STAR TYPE

STAR TYPE

The Star Mechanical Seal manufactured by Maceng Engineering is a robust and reliable single spring mechanical seal specially designed for textile pumps, dyeing machines, circulation pumps, and textile processing equipment. Engineered for demanding textile industry applications, the seal provides excellent leakage control, smooth operation, and extended service life under continuous operating conditions.

Manufactured using precision-engineered components, premium-grade face materials, and corrosion-resistant metal parts, the Star Mechanical Seal offers superior wear resistance, chemical compatibility, and dependable sealing performance. Its reliable construction ensures stable operation while handling water, dyes, chemicals, solvents, and process fluids commonly used in textile manufacturing. The seal is an ideal solution for textile processing systems requiring durability, low maintenance, and consistent sealing efficiency.

Request a Quote

Product Description

The Star Mechanical Seal manufactured by Maceng Engineering is a precision-engineered sealing solution designed specifically for textile industry pumps and various industrial fluid handling applications. Manufactured using high-quality components and advanced engineering processes, the seal provides reliable sealing performance while handling water, dyes, chemicals, solvents, and process fluids commonly used in textile manufacturing.

The robust single spring, unbalanced design ensures stable face loading, excellent leakage prevention, and long operational life under continuous-duty conditions. With corrosion-resistant construction and premium face material combinations, the Star Mechanical Seal delivers dependable performance, reduced maintenance requirements, and improved pump efficiency in demanding textile and process industry applications.

Technical Specifications:

  • Seal Type: Single Spring Mechanical Seal
  • Design: Unbalanced
  • Seal Arrangement: Single Seal
  • Shaft Size Range: 12 mm to 70 mm
  • Pressure: Up to 10 Bar
  • Temperature: -20°C to +180°C
  • Speed: Up to 15 m/s
  • Rotation: Bi-Directional
  • Mounting: Internal Mounted

Material Construction:

  • Rotary Face: Silicon Carbide / Tungsten Carbide
  • Stationary Face: Carbon Graphite
  • Secondary Seal: Silicone / NBR / EPDM / Viton
  • Spring: SS 304 / SS 316
  • Metal Parts: SS 304 / SS 316

Optional Face Combinations:

  • Carbon vs Ceramic
  • Carbon vs Silicon Carbide
  • Silicon Carbide vs Silicon Carbide
  • Tungsten Carbide vs Silicon Carbide

Features & Benefits:

  • Designed for textile industry applications
  • Excellent leakage prevention
  • High wear resistance
  • Easy installation and maintenance
  • Corrosion-resistant construction
  • Suitable for continuous operation
  • Long service life
  • Cost-effective sealing solution

Applications:

  • Textile Processing Pumps
  • Dyeing Machines
  • Chemical Transfer Pumps
  • Circulation Pumps
  • Water Pumps
  • Textile Finishing Plants
  • Printing & Dyeing Equipment
  • Process Industry Pumps

Operating Media:

  • Water
  • Dye Solutions
  • Textile Chemicals
  • Solvents
  • Mild Acids & Alkalis
  • Process Liquids

Product Advantages:

  • Reliable performance in textile applications
  • Reduced pump downtime
  • Low maintenance cost
  • Superior seal face technology
  • High chemical resistance
  • Consistent sealing efficiency

The Star Mechanical Seal by Maceng Engineering is an ideal sealing solution for textile processing pumps and industrial equipment, offering reliable operation, superior durability, and efficient sealing performance in challenging process environments.
