EG 03

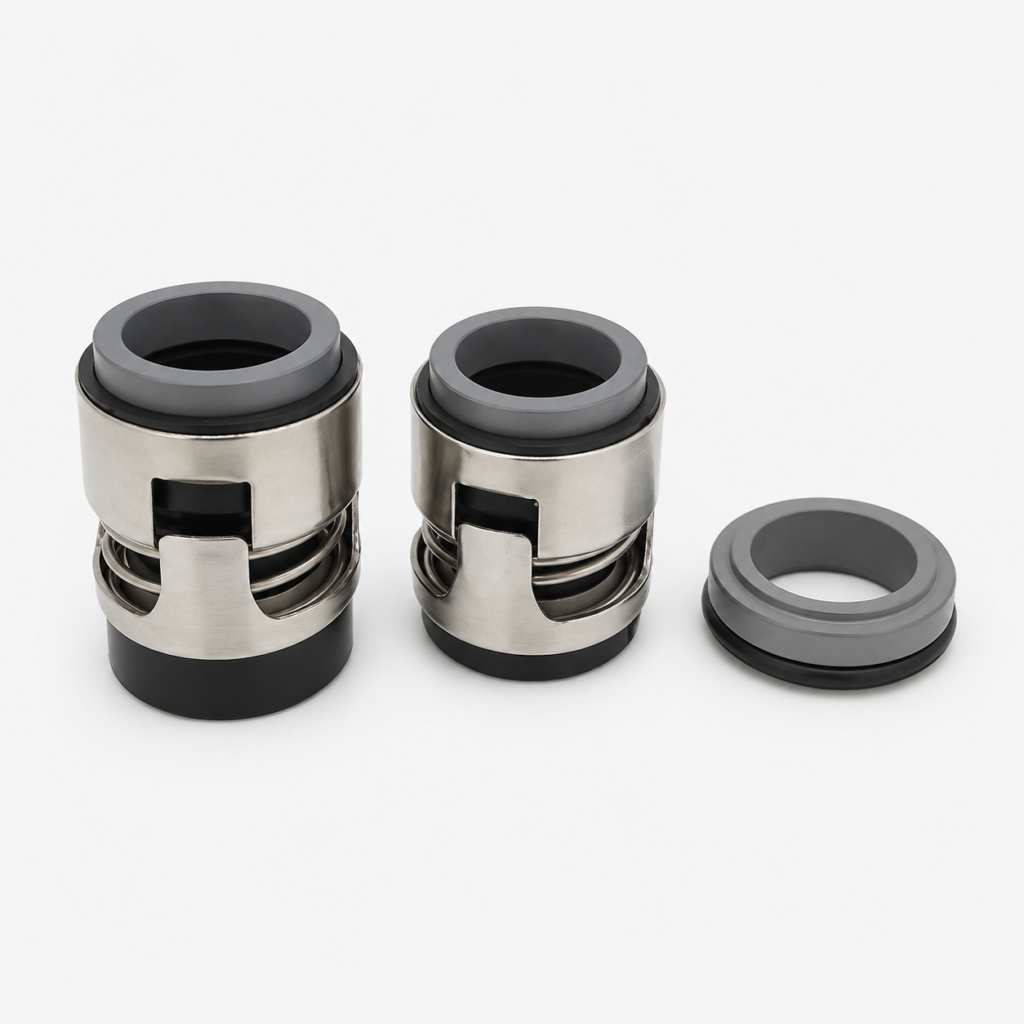

The G03 Mechanical Seal manufactured by Maceng Engineering is a high-performance replacement mechanical seal designed for Grundfos CH, CHI, CHE, CRK, SPK, TP, and AP series pumps. Featuring a balanced cartridge-style design, the seal provides reliable torque transmission, accurate installation, and consistent sealing performance for demanding industrial pumping applications.

Engineered using precision-manufactured components and premium-quality materials, the G03 Mechanical Seal ensures leak-free operation, smooth running, and extended service life. Its robust cartridge construction allows easy installation and maintenance while providing excellent resistance to wear, corrosion, pressure variations, and temperature fluctuations. The seal is suitable for handling clean water, process water, light chemicals, oils, and mildly corrosive media in water supply systems, industrial circulation pumps, booster systems, and various fluid handling applications.

Request a Quote

Product Description

The G03 Mechanical Seal manufactured by Maceng Engineering is a high-performance cartridge-type mechanical seal designed for Grundfos CH, CHI, CHE, CR, CRN, CRK, SPK, TP, and similar industrial pump applications. Featuring a balanced cartridge design, the seal provides reliable leakage control, easy installation, and excellent sealing performance under demanding operating conditions.

The internal cartridge construction ensures accurate positioning, simplified maintenance, and safe installation while reducing the risk of installation errors. Manufactured using premium-grade face materials, elastomers, stainless steel components, and precision-engineered parts, the G03 Mechanical Seal delivers excellent resistance to wear, corrosion, pressure variations, and temperature fluctuations for long-term operational reliability.

Technical Specifications:

Model: G03
Seal Type: Cartridge Mechanical Seal
Design: Balanced
Shaft Sizes: 12 mm & 16 mm
Pressure: Up to 10 Bar
Temperature: -30°C to +200°C (depending on elastomer)
Speed: Up to 15 m/s
Axial Movement: ±0.1 mm
Mounting: Internal Cartridge Type
Rotation: Bi-directional

Material Construction:

Rotary Face: Carbon / Silicon Carbide / Tungsten Carbide
Stationary Face: Silicon Carbide / Tungsten Carbide / Ceramic
Elastomer: NBR / EPDM / Viton (FKM)
Spring: SS304 / SS316
Metal Parts: SS304 / SS316

Suitable Pump Models:

Grundfos CH Series
Grundfos CHI Series
Grundfos CHE Series
Grundfos CR / CRN Series
Grundfos CRK Series
Grundfos SPK Series
Grundfos TP Series
Grundfos AP Series

Features & Benefits:

Balanced cartridge design
Easy and safe installation
Leak-free sealing performance
Low maintenance requirement
Excellent corrosion resistance
Suitable for high-speed pumps
Long operational service life
Direct replacement for original Grundfos seal

Applications:

Water Supply Systems
Booster Pumps
Industrial Water Circulation
HVAC Systems
Chemical Processing
Water Treatment Plants
Cooling Water Applications
Light Chemical Services

The G03 Mechanical Seal by Maceng Engineering provides superior sealing reliability, easy maintenance, and long-lasting performance, making it an ideal replacement sealing solution for Grundfos pumps and various industrial fluid handling applications.
