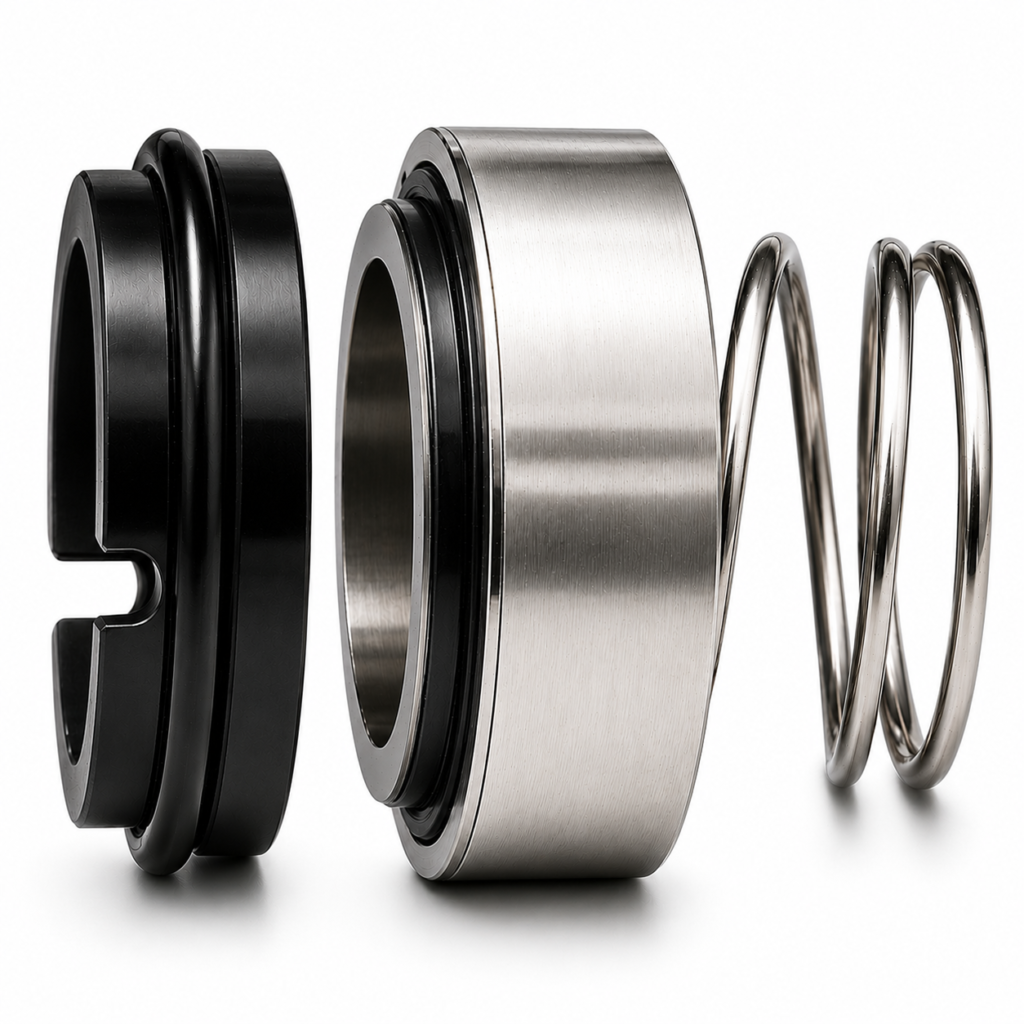

Conical Spring

The Conical Spring Mechanical Seal manufactured by Maceng Engineering is a compact and reliable sealing solution designed for pumps and rotating equipment operating under standard industrial conditions. The seal features a conical spring design that provides excellent torque transmission, self-cleaning action, and consistent seal face pressure, ensuring dependable sealing performance with reduced leakage and wear. Its robust construction helps prevent clogging of the spring coils, making it suitable for handling water, oils, chemicals, and various industrial process fluids. Manufactured using precision-engineered components and premium-grade materials, the seal delivers excellent resistance to vibration, shaft movement, and operational wear, ensuring long service life and reliable performance across a wide range of industrial applications.

Request a Quote

Product Description

The Conical Spring Mechanical Seal manufactured by Maceng Engineering is a compact, economical, and reliable sealing solution designed for a wide range of industrial pumping and rotating equipment applications. The conical single spring design provides effective torque transmission while offering a self-cleaning action that helps prevent clogging and ensures consistent sealing performance in various operating conditions.

Manufactured using precision-engineered components and premium-quality materials, the seal offers excellent resistance to leakage, wear, vibration, and shaft movement. Its simple construction allows easy installation and maintenance, making it a preferred choice for standard industrial applications requiring dependable and cost-effective sealing performance.

Technical Specifications:

Seal Type: Conical Spring Mechanical Seal
Design: Unbalanced / Internally Mounted
Spring Design: Conical Single Spring
Shaft Size Range: 10 mm to 100 mm
Pressure Capacity: Up to 10 Bar
Temperature Range: -20°C to +180°C (depending on material combination)
Speed: Up to 3000 RPM
Face Material Options: Carbon, Ceramic, Silicon Carbide (SIC), Tungsten Carbide (TC)
Elastomer Options: NBR, Viton, EPDM, PTFE
Metal Components: SS 304 / SS 316 / Hastelloy
Applications: Centrifugal Pumps, Water Pumps, Chemical Pumps, Oil Pumps, Monoblock Pumps, Process Industries, Textile, Pharmaceutical, and General Engineering Industries

Features:

Compact and economical design
Self-cleaning conical spring mechanism
Reliable sealing performance
Easy installation and maintenance
Reduced leakage and wear
Good resistance to vibration and shaft movement
Suitable for standard industrial applications
Long operational service life

The Conical Spring Mechanical Seal by Maceng Engineering delivers efficient sealing performance, durability, and dependable operation, making it an ideal sealing solution for a wide range of industrial pumping and rotating equipment applications.
