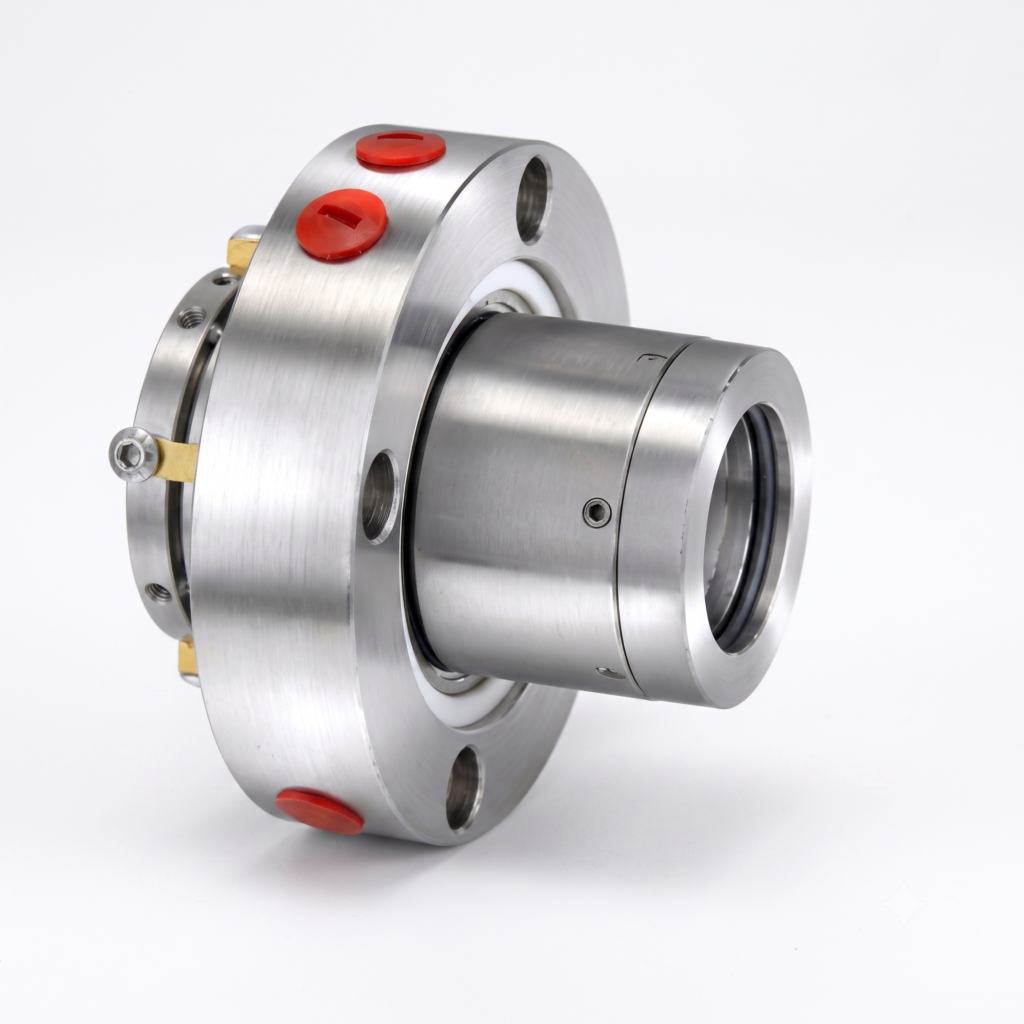

Double Acting Cartridge Mechanical Seals

The Series MEDCS102 Double Acting Cartridge Mechanical Seal manufactured by Maceng Engineering is a premium, pre-assembled sealing solution featuring an integral sleeve and gland plate. Engineered with a balanced, multi-spring design, it requires no dimensional adjustments during installation and is offered in back-to-back and tandem arrangements (API Plan-53) for ultimate reliability in chemical, slurry, and sludge pump applications.

Request a Quote

Product Description

The Series MEDCS102 manufactured by Maceng Engineering is an advanced range of double acting cartridge mechanical seals equipped with an integral sleeve and gland plate. Designed to maximize equipment reliability and minimize maintenance time, these multi-spring design seals are fully pre-assembled. This allows them to be directly installed onto your rotating equipment without the need for any complex dimensional adjustments on site.

Engineered for exceptional versatility, these highly balanced seals operate entirely independent of the direction of rotation. To meet stringent industrial requirements and prevent hazardous emissions, the MEDCS102 series is offered in both back-to-back and tandem arrangements in accordance with API Plan-53, making them a superior and safe choice for demanding fluid handling processes.

Operating Limits

Seal Size: 20 mm to 100 mm
Pressure: Up to 10 kg/cm²
Temperature: -20°C to 180°C
Speed: Up to 20 m/s

Key Seal Features

Double seal, Cartridge unit configuration
Inside Mounted and Balanced design
Independent of direction of rotation
API Plan-53 compliant (Back-to-back and tandem arrangements)
Easy Installation with no dimensional adjustments required
Field repairable to significantly reduce downtime
Interchangeable mating rings & seal ring

Material of Construction (MOC)

Seal Faces: Carbon, Ceramic, Silicon Carbide, Tungsten Carbide
Secondary Sealing: Viton, PTFE, GFT, Kalrez, Aflas
Metal Components: SS 316, Hastelloy C, Alloy-20

Industrial Applications

The highly robust construction of the MEDCS102 makes it an ideal, high-performance sealing solution for challenging environments, including:

Pulp & Paper Industries
Chemical Industries
Slurry Pumps
Sludge Pumps
