Product Description

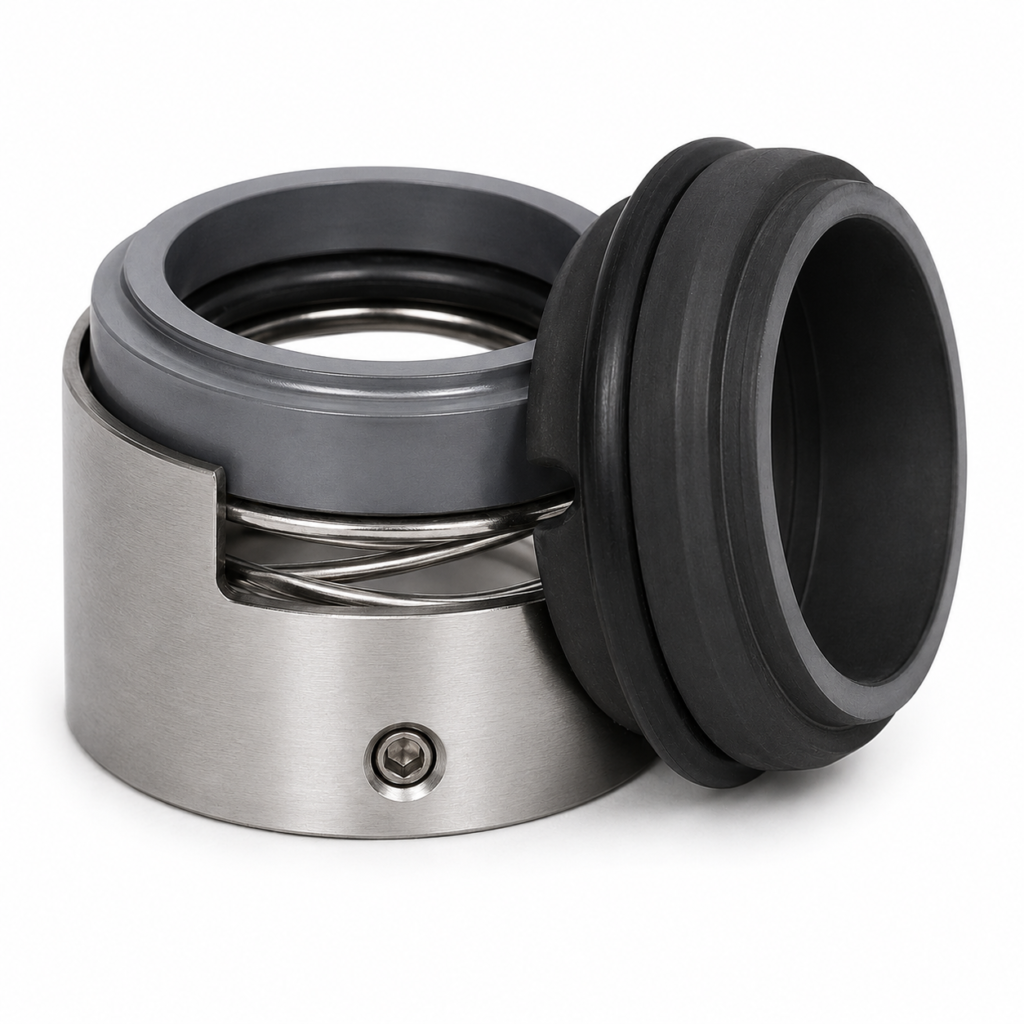

The M7N Mechanical Seal manufactured by Maceng Engineering is a versatile and reliable sealing solution designed for centrifugal pumps, chemical pumps, utility pumps, and various industrial rotating equipment. Known for its dependable performance, easy installation, and low maintenance requirements, the M7N seal is widely used across multiple industries for handling water, chemicals, oils, and process fluids.
The conical spring design provides excellent flexibility, uniform face loading, and stable sealing performance while maintaining operational efficiency under varying pressure and temperature conditions. Its robust internally mounted construction ensures reliable operation, reduced leakage, and extended service life.
Technical Specifications:
- Seal Type: M7N Mechanical Seal
- Configuration: Single Spring Mechanical Seal
- Design: Unbalanced Type
- Rotation: Independent of Direction of Rotation
- Spring Design: Conical Spring
- Construction: Internally Mounted
- Shaft Size Range: 10 mm to 100 mm
- Pressure Capacity: Up to 16 Bar
- Temperature Range: -20°C to +180°C
- Speed: Up to 15 m/s
Material Combinations:
- Face Material Options: Carbon vs Ceramic
- Face Material Options: Carbon vs Silicon Carbide (SIC)
- Face Material Options: Silicon Carbide vs Silicon Carbide
- Face Material Options: Tungsten Carbide vs Tungsten Carbide
- Elastomer Options: NBR, EPDM, Viton, TTV, PTFE
Features:
- Conical spring design for stable sealing performance
- Independent of shaft rotation direction
- Compact and robust construction
- Easy installation and maintenance
- Reliable leakage control
- Suitable for a wide range of industrial applications
- Excellent operational flexibility
- Long service life and dependable performance
The M7N Mechanical Seal by Maceng Engineering delivers efficient sealing performance, durability, and operational reliability, making it an ideal choice for industrial pumps and rotating equipment operating under diverse service conditions.
